Ls 500 Wholesale thermoplastic road marking paint machine

Short Description:

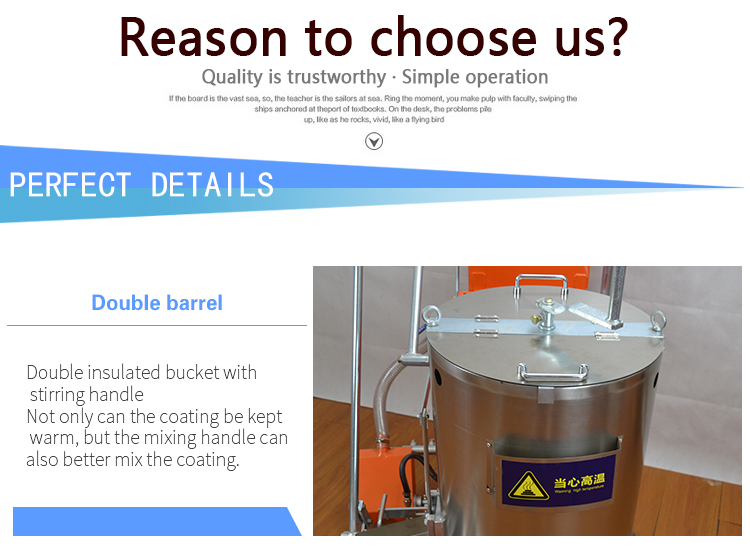

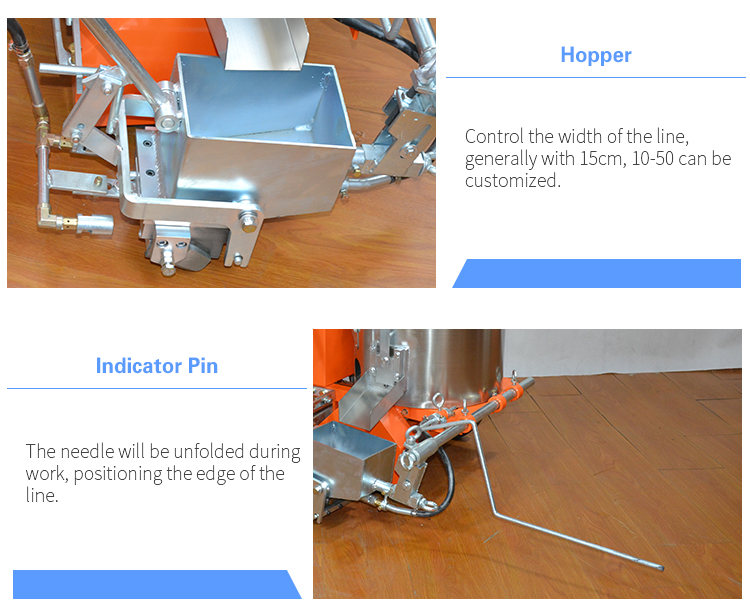

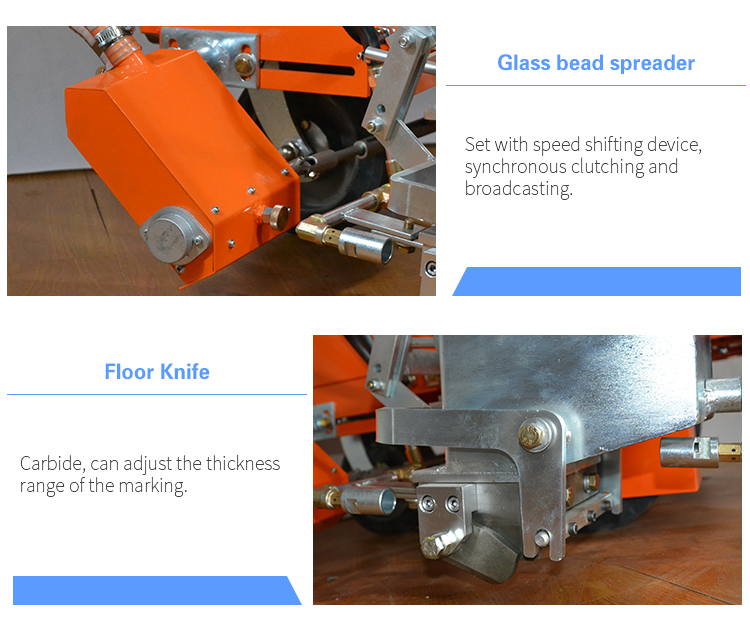

Andersen LS-500 Par king lot thermoplastic road marking machine saler 1. Paint barrels: double stainless steel heating insulation barrels, capacity 105 kg, plug-in manually mixer devices, removable devices. 2. Glass Bead storage box: 10 kg / box. 3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device. 4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable. 5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1.2-4mm. 6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction. 7. Heating method: liquefied petroleum gas. 8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.


Product Detail

Product Tags

Product Features

a4
a5
a6
x

Technical Parameters

Code Parameter  QTY Outer box size G.W/N.W
LS-500 Name Thermoplastic Paint Road Line 1 120*90*95 CM 115kg
liquid gas storage tank heat 15KG
Power: 5.5HP
Line wide: 100mm 150mm 200mm 300mm 450mm
Temperature: 180-210°C
Line thickness 1.0-4.0MM
Hopper capacity 120L
Glass Bead storage box: 12KG

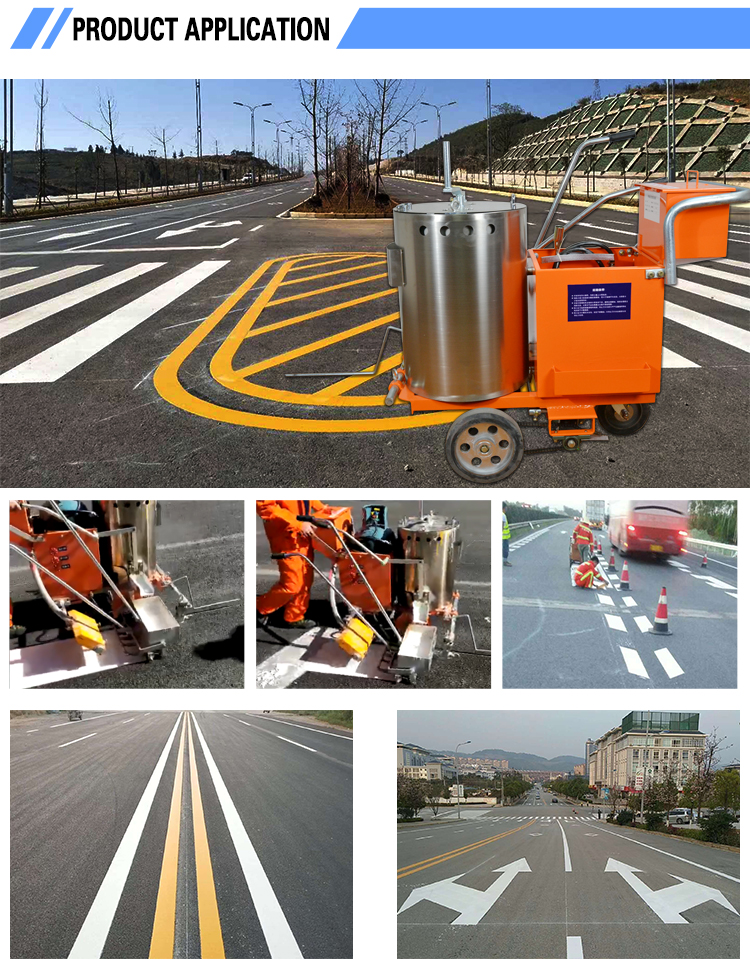

Application

a
